Characteristics of ANG CNC deep hole drilling machine:

1. The machine tool structure is designed by engineers from Taiwan Torch Headquarters; The mechanical testing is carried out by the German company Modia, using an analog molecular motion balance calculation cycle of three months.

2. The whole machine castings are made of high-quality Mihanna HT250 cast iron, which is quenched twice with German high-frequency quenching and naturally cooled for 72 hours; And after three cycles of shaking aging treatment, the overall structure of the casting is uniform and stable, with high rigidity and strong stability.

3. The main castings and accessories have been processed by well-known Spanish gantry milling and guide rail grinding machines to ensure assembly accuracy.

4. Three axis linear moving transmission shaft screw, using imported Taiwan TG-ANG | silver ground double nut ball screw, high rigidity, high-precision screw, providing stronger torque during processing, long-term fine sliding, stable step movement, and more durability.

5. The three-axis linear mobile transmission shaft guide adopts imported high rigidity, heavy-duty, and high-precision Taiwan TG-ANG | upper silver roller P3 level linear guide, ensuring long-term high-precision machining and extending the service life of the linear guide. The precision grinding of the machine tool guide surface adopts a German imported grinder.

6. The three-axis transmission shaft feed drive combination adopts Taiwan's new generation AC/Infineon/Weichuang motors and drivers, and is directly connected with ball screws for smooth transmission without backlash. At the same time, its good rigidity and optimized shock absorption performance greatly improve the dynamic rigidity of the transmission system, enabling fast and stable movement.

7. The spindle motor adopts high-power joint venture MK/Kobe/ultra synchronous motor, which can meet the high and low speed chip processing needs of users, and is equipped with high-power automatic oil cooling equipment to ensure that normal processing is in a constant temperature state and avoid affecting the processing effect due to oil temperature rise.

8. The system can be selected from China, Taiwan, Japan, Germany and France to fully meet the diversified needs of users; Taiwan's new generation system is the earliest manufacturer in Asia to launch deep hole drilling systems, with advantages such as stable quality, complete functions, high intelligence, comprehensive after-sales service, and easy to operate entry.

9. Fully sealed sheet metal, completely avoiding oil leakage/liquid and oil/liquid floating out, with strong sealing. Sheet metal is made with a thickness of 2.0mm through laser cutting, CNC bending, and baking paint production.

10. Magnetic chip conveyor and paper filter device to achieve a filtration accuracy of less than 20 inches.

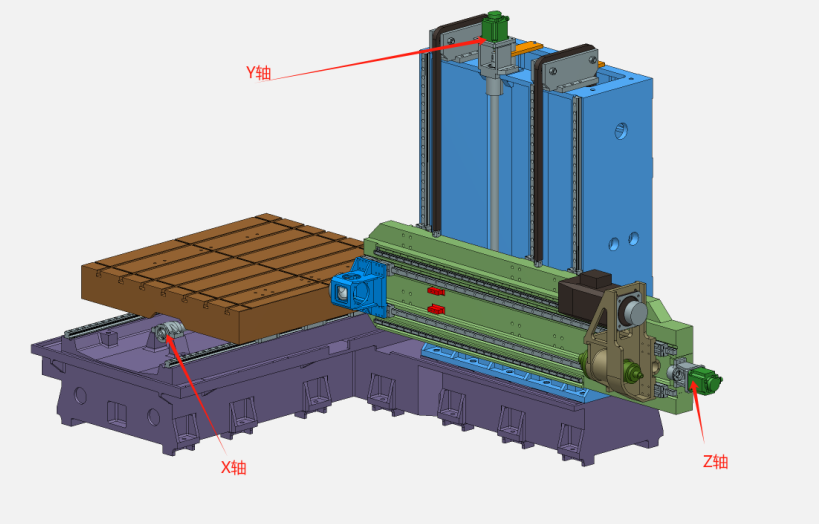

11. Three axis mechanical transmission part shaft release:

• X-axis: worktable moves left and right

• Y-axis: The spindle seat moves up and down against the plate

• Z-axis: Drilling spindle seat moves forward and backward

12. Application areas of ANG deep hole drill:

According to specifications and functions, it can be summarized as: deep hole machining of workpieces with aperture of 0.8-300mm/depth of 50-6000mm. For example, high-speed trains (camshafts, valve guides, etc.), tractor parts, internal combustion engines (pistons, connecting rods), nuclear power pipelines, military products, aerospace parts, wind power generation (inner and outer rings), high-precision motor shafts, stainless steel connections, silver plated products, precision bridge construction technology, graphite, high-precision pressure pipelines, molds and accessories, probes, metallurgical parts, small spindle inner holes, etc. The use of fixtures can be used for processing anisotropic outer edges and eccentric holes. Customers can choose the corresponding model according to our production capacity.

13. ANG deep hole drilling machine type:

• Bar material: single axis deep hole drill, double axis deep hole drill, four axis deep hole drill, spray suction drill, core drilling, turning milling drilling deep hole composite machine

• Outer edge of circular hole: specialized deep hole drill/1 °/360

• Special machine: reciprocating deep hole drill, eccentric hole deep hole drill, graphite deep hole drill, woodworking deep hole drill, four axis spatial angle deep hole drill

• Coordinate system: Two, three, four, five, six, seven axis deep hole drill, vertical deep hole, boring type 180 ° counter rotating deep hole drill, etc.

14. National standard for strict execution of ANG CNC deep hole drilling

• Small CNC deep hole drilling machine Part 1: Accuracy testing (JB_T 11579.1-2013);

• Small CNC deep hole drilling machine Part 2: Technical conditions (JB_T 11579.2-2013);

• Mechanical and electrical safety - Mechanical and electrical equipment - Part 1- General technical specifications (GB_T 5226.1-2019).

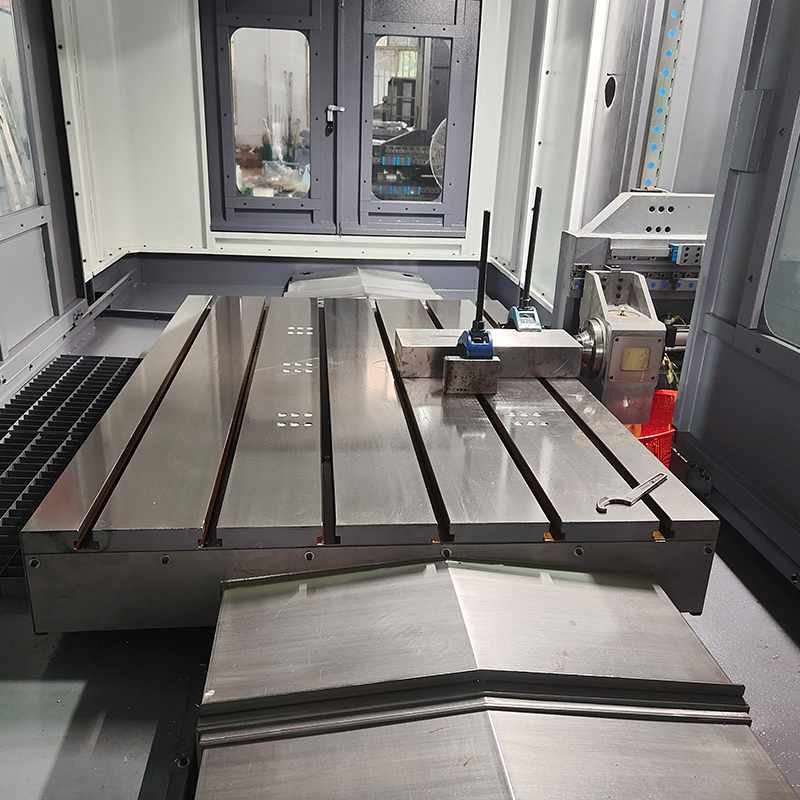

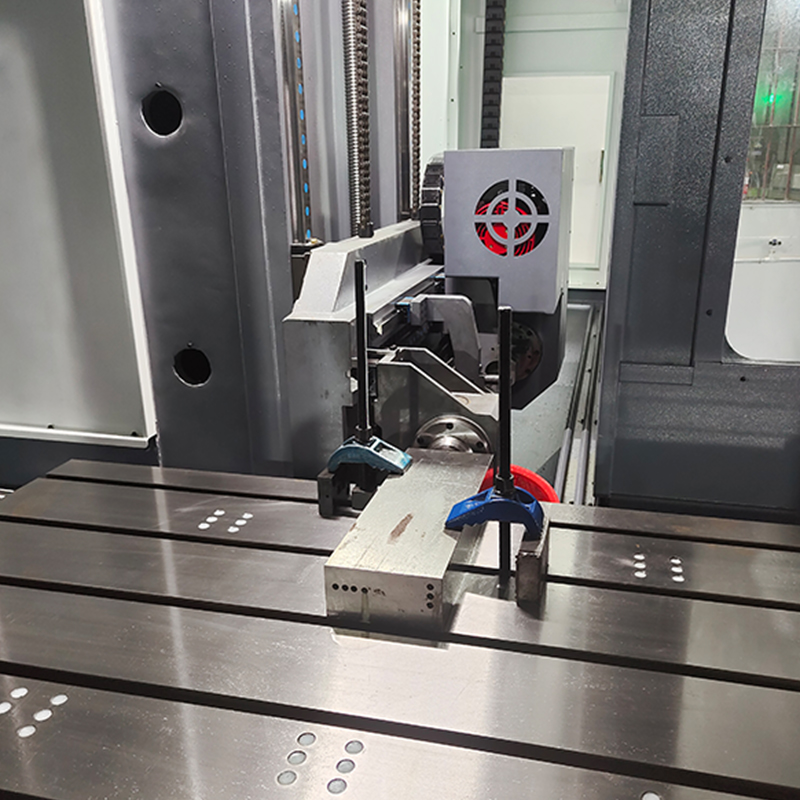

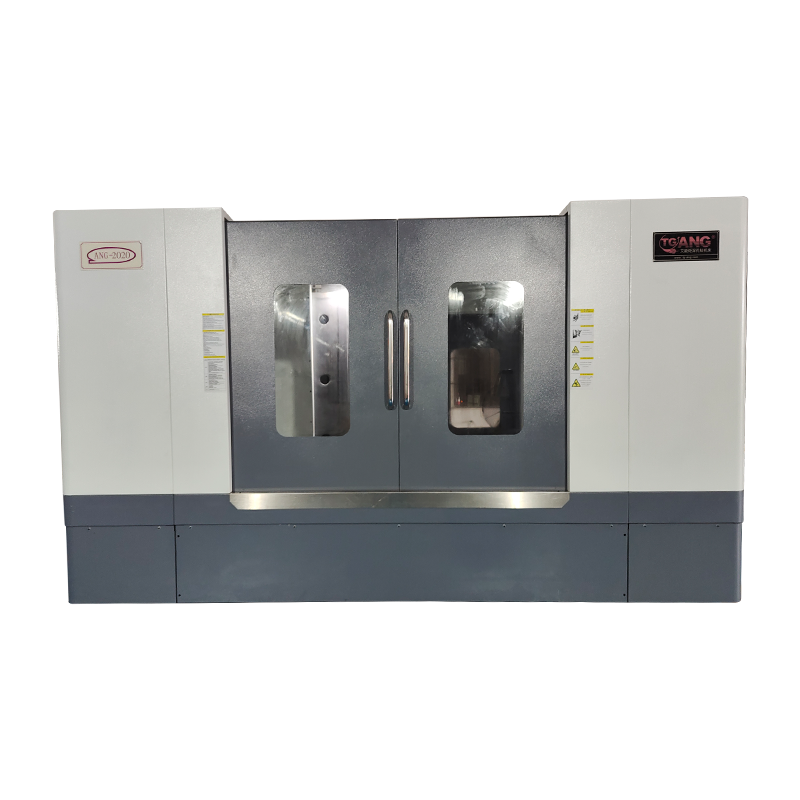

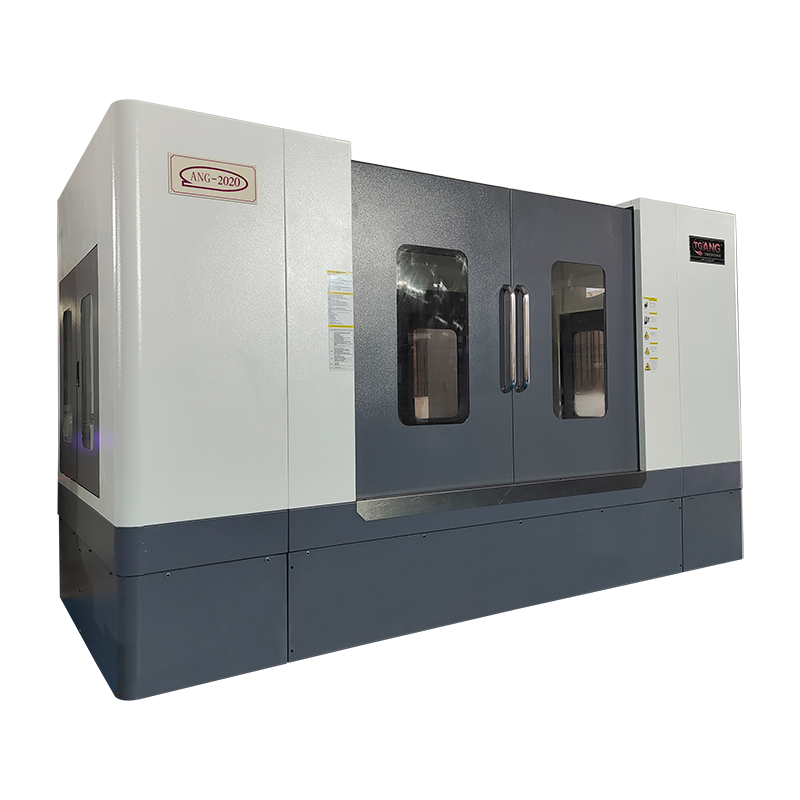

Machine tool pictures

ANG-2020 CNC deep hole drilling machine parameters
