Characteristics of ANG CNC deep hole drilling machine:

1. The machine tool structure is designed by engineers from Taiwan Torch Headquarters; The mechanical testing is carried out by the German company Modia, using an analog molecular motion balance calculation cycle of three months.

2. The whole machine castings are made of high-quality Mihanna HT250 cast iron, which is quenched twice with German high-frequency quenching and naturally cooled for 72 hours; And after three cycles of shaking aging treatment, the overall structure of the casting is uniform and stable, with high rigidity and strong stability.

3. The main castings and accessories have been processed by well-known Spanish gantry milling and guide rail grinding machines to ensure assembly accuracy.

4. Axial linear movement transmission shaft screw, using imported German Frey ground ball screw, high rigidity, high-precision screw, providing stronger torque during processing, long-term fine sliding, stable step movement, and more durability.

5. The axial linear movement transmission shaft guide adopts imported high rigidity, heavy-duty, high-precision silver roller linear guide on the table, ensuring long-term high-precision machining and extending the service life of the linear guide. The precision grinding of the machine tool guide surface adopts a German imported grinder.

6. The axial transmission shaft feed drive combination adopts a Chinese Taiyuan motor and driver, and is directly connected with a ball screw for smooth transmission without backlash. At the same time, its good rigidity and optimized shock absorption performance greatly improve the dynamic rigidity of the transmission system, enabling fast and stable movement.

7. The gun drill drive adopts a high-power electric spindle and comes with a spindle cooling device, which can meet the constant temperature and stable operation requirements of the spindle during high and low speed chip cutting.

8. The supply of gun drill chip cutting fluid is matched with an immersion type automatic oil cooling equipment to ensure that the normal processing is in a constant temperature state and avoid affecting the processing effect due to the increase of oil temperature.

9. The system can be selected from China, Taiwan, Japan, Germany and France to fully meet the diversified needs of users; China Taiyuan System is one of the earliest manufacturers in Asia to launch deep hole drilling systems, with advantages such as stable quality, complete functions, high intelligence, comprehensive after-sales service, and easy to operate.

10. Fully enclosed sheet metal, completely avoiding graphite dust from floating out, with strong sealing. Sheet metal is made with a thickness of 2.0mm through laser cutting, CNC bending, and baking paint production.

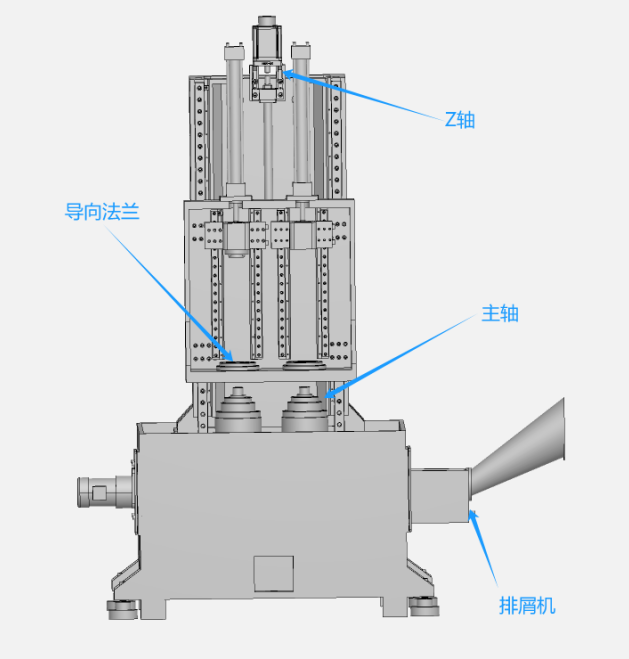

11. Mechanical transmission shaft release:

Z-axis: The vertical downward travel axis of the workpiece seat.

Applicable fields: fuel injectors, nozzles, bone nails, etc.

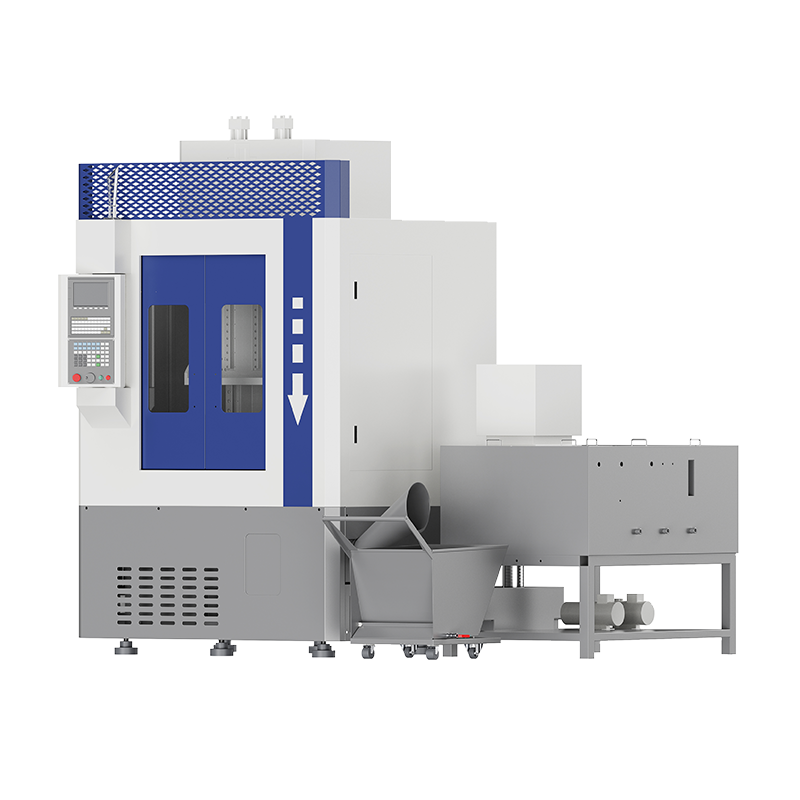

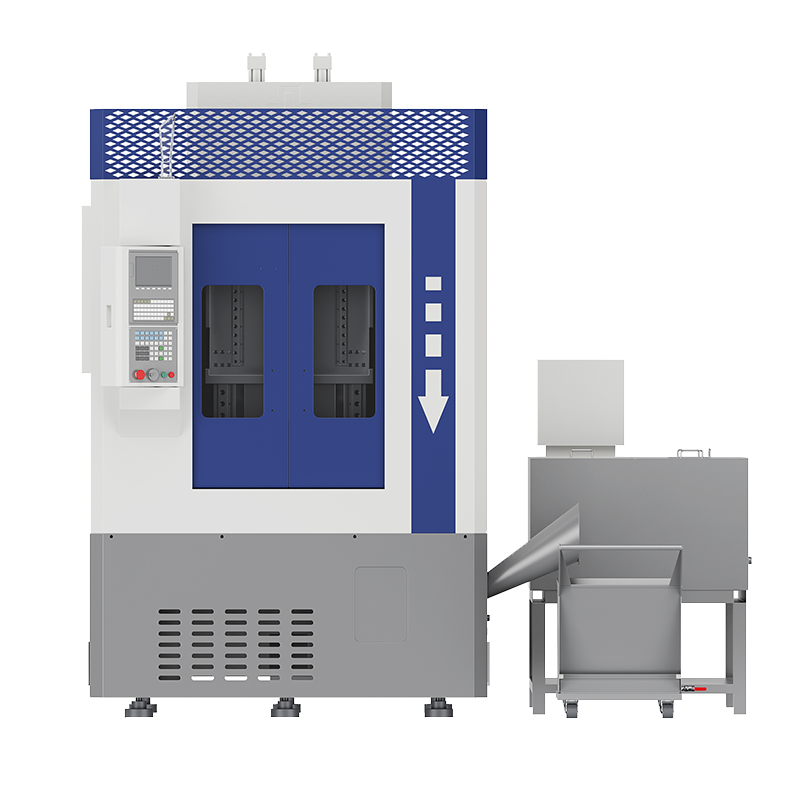

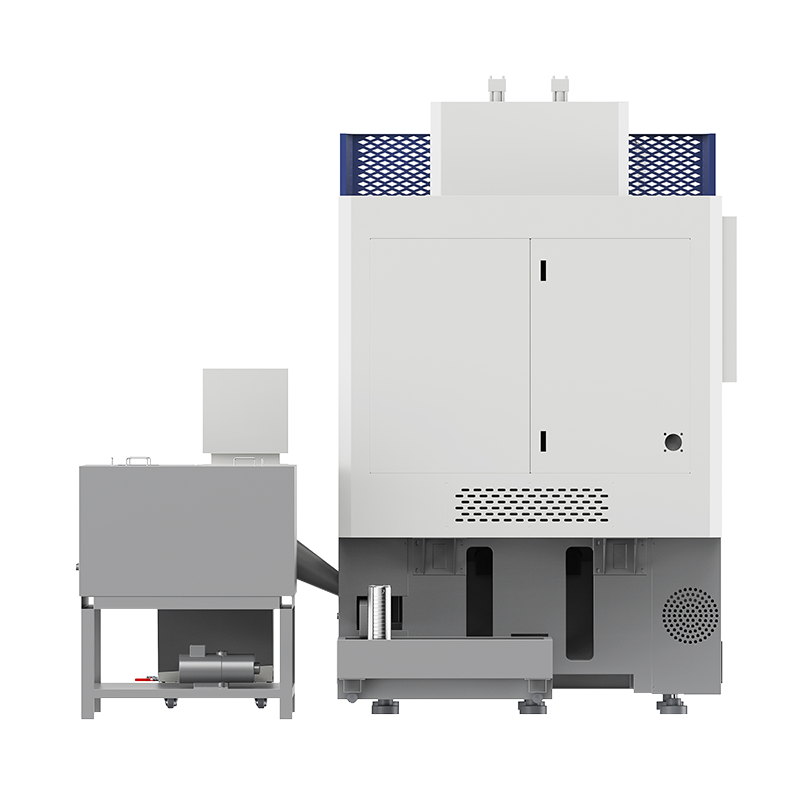

Machine tool pictures

Parameters of CNC deep hole drilling machine tool
